Innovative Technology for Drinks Producers
P45 Corking Machine

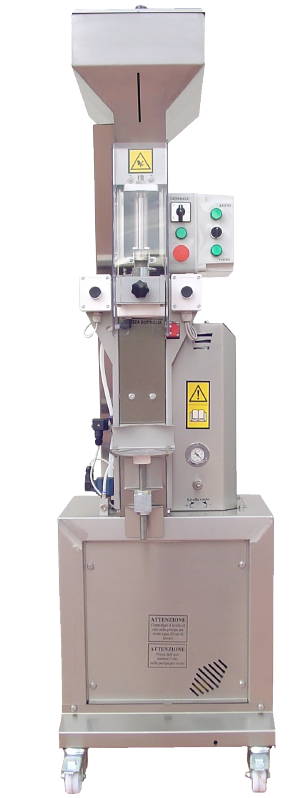

P35 Corking Machine
P12 Corking Machine
P45 Corking Machine
P35 Corking Machine
P12 Corking Machine
*All images shown are for illustration purposes only. Actual product may vary.
Corking

P12-45

The M.E.P range of semi-automatic corking machines are ideal for the smaller sized producer, featuring manual cork loading and insertion with an optional upgrade to an automatic cork loading mechanism. The lightweight stainless-steel construction is sturdy and easy to clean whilst pneumatic pressure powers the corking mechanism.

The corking machines are suitable for straight corks only with a diameter range of 22-26mm. An optional cork feeding hopper is available. The machine can handle bottles up to 375mm in height and has a corking time of approximately 2-3 seconds per bottle.

Main Features
  • Made entirely from stainless steel.
  • Semi-automatic operation with manual loading.
  • Manual loading of corks.
  • Optional automatic cork loading mechanism.
  • Pneumatic powered stainless steel corking jaws.
  • 2-3 second corking time.
P12 P35 P45
Corking Time: 3 seconds 2 seconds 2 seconds
Cork Diameter: 22-26 mm 22-26 mm 22-26 mm
Maximum Cork Height: 50 mm 50 mm 50 mm
Maximum Bottle Height: 375 mm 375 mm 375 mm
Air Requirements: 4-6 bar, 9.8-13.8
Supply Voltage: 1/N/PE~230V 50Hz 1/N/PE~230V 50Hz
Dimensions (WxH): 520 mm x 1840 mm 520 mm x 1830 mm 520 mm x 1830 mm
Weight: 64 kg 114 kg 98 kg
**Product specification may vary due to enhancement by the manufacturer, choice of optional extras, display stands not included or otherwise. Information is regularly updated by our manufacturing partners and is therefore subject to change without notice.
